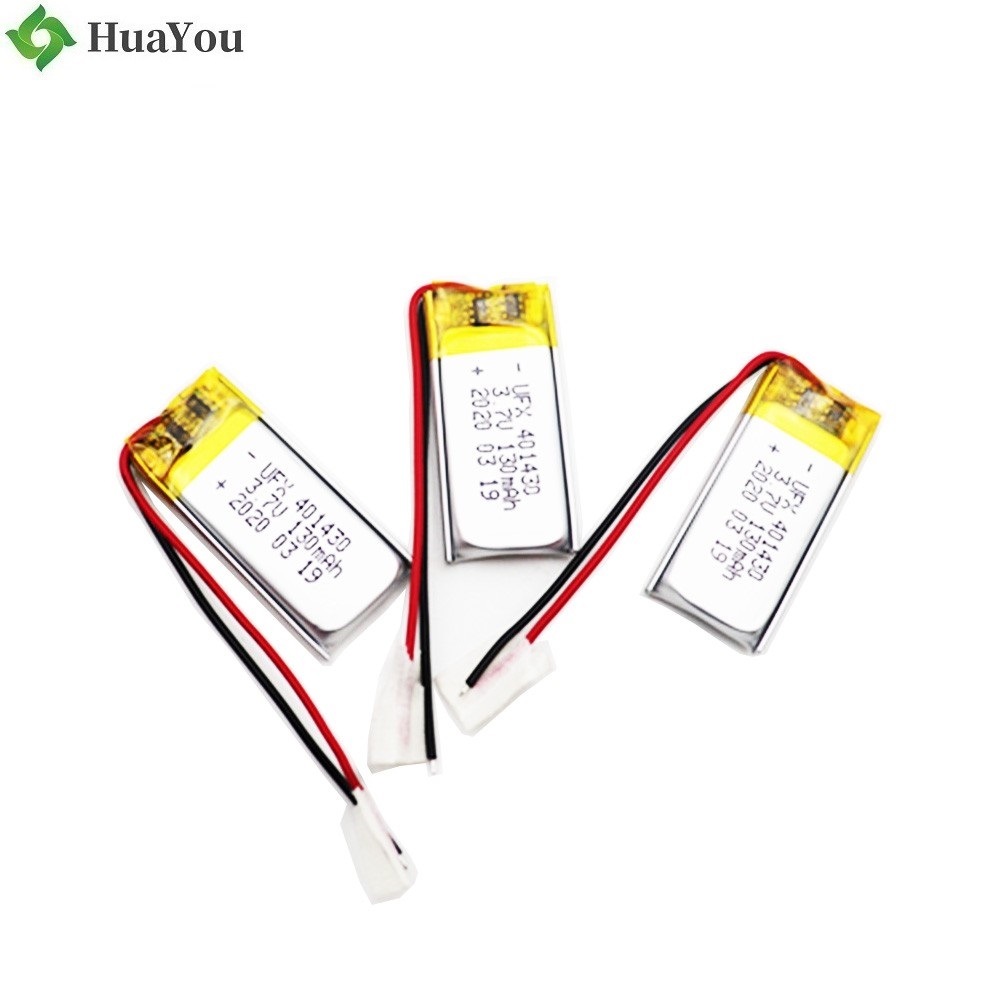

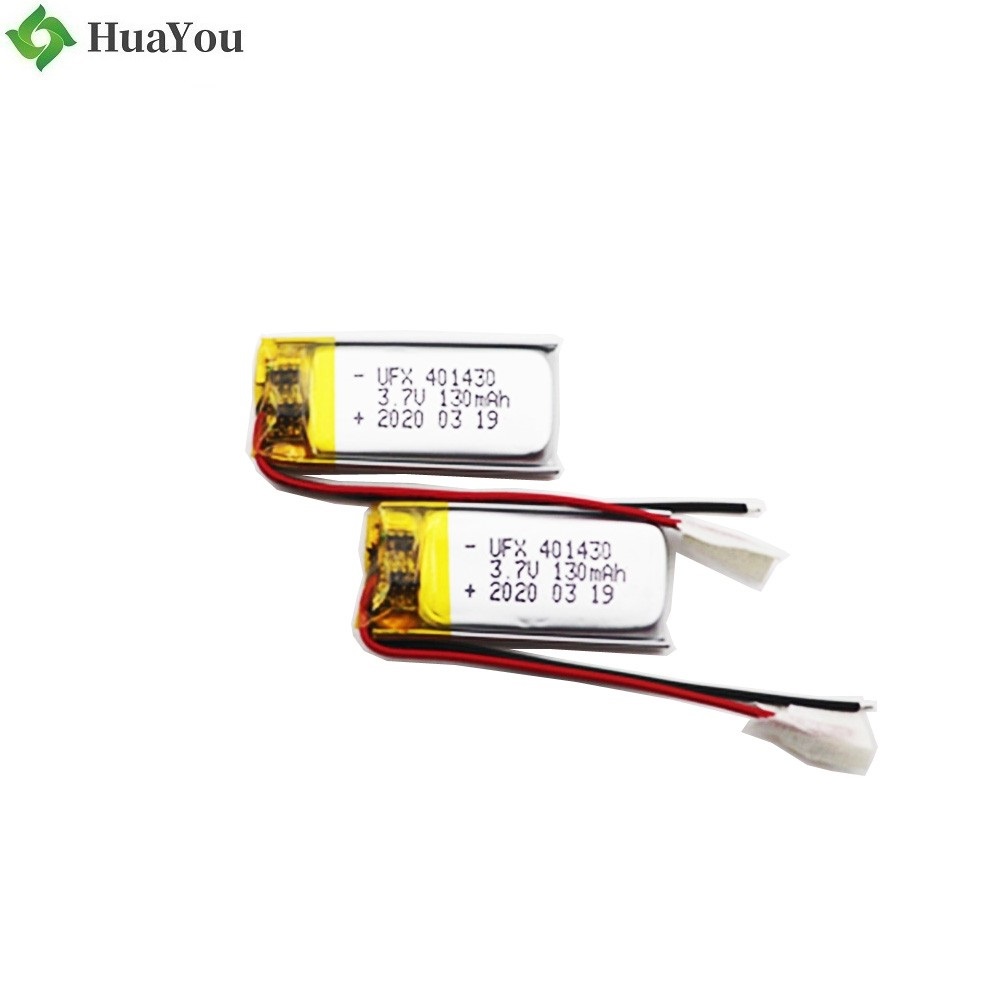

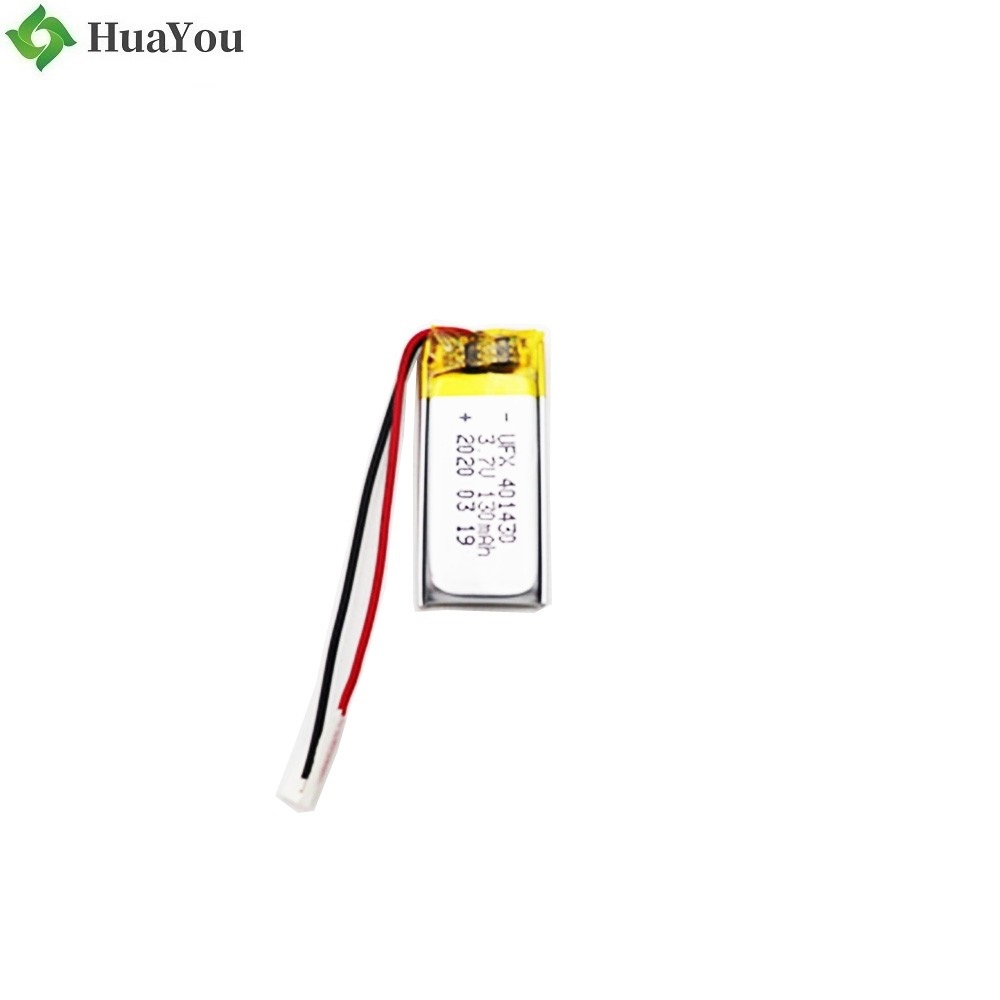

Cheap And Durable For Children's Smart Watch Battery HY 401430 130mAh 3.7V Li-Polymer Battery With KC Certification

$1.28
In stock
SKU
HY 401430 130mAh 3.7V

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !

    Place of Origin: Guangdong, China
    Brand Name: HY
    Model Number: 401430
    Type: Li-polymer
    Nominal Voltage: 3.7V
    Size: 4*14*32mm
    Nominal Capacity: 130mAh
    Product name: HY 401430 Li-polymer Battery
    Warranty: 1 Year
    Weight: 5g
    Cycle life: 500 Times
    Application: Children's Smart Watch Battery
    Certificate: KC/CE/ROHS/MSDS/UN38.3
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C



Li-Ion 18650 Battery

130mAh Battery For Children's Smart Watch

401430 130mAh 3.7V Li-Polymer Battery

Cheap And Durable 130mAh LiPo Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

140mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

130mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤455mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max32mm

Width: max14mm
Thickness: max4mm

Initial  Dimension
