Factory In Stock Supply For Smart Helmet Battery HY 143060 1800mAh 3.2V LiFePO4 Battery WIth UN38.3 Certification

$0.95
In stock
SKU
HY 143060 1800mAh 3.2V

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

    Place of Origin: Guangdong, China
    Brand Name: HY
    Model Number: 143060
    Type: LiFePO4 Battery
    Nominal Voltage: 3.2V
    Size: 14*30*63mm
    Nominal Capacity: 1800mAh
    Product name: HY 143060 LiFePO4 Battery
    Warranty: 1 Year
    Weight: 34.2g
    Cycle life: 1000 Times
    Application: Smart Helmet
    Certificate: UN38.3/CE/MSDS/ROHS
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C

Factory In Stock Supply Battery 143060 1800mAh 3.2V LiFePO4 Battery WIth UN38.3 Certification

Factory In Stock Supply Battery 143060 1800mAh 3.2V LiFePO4 Battery WIth UN38.3 Certification

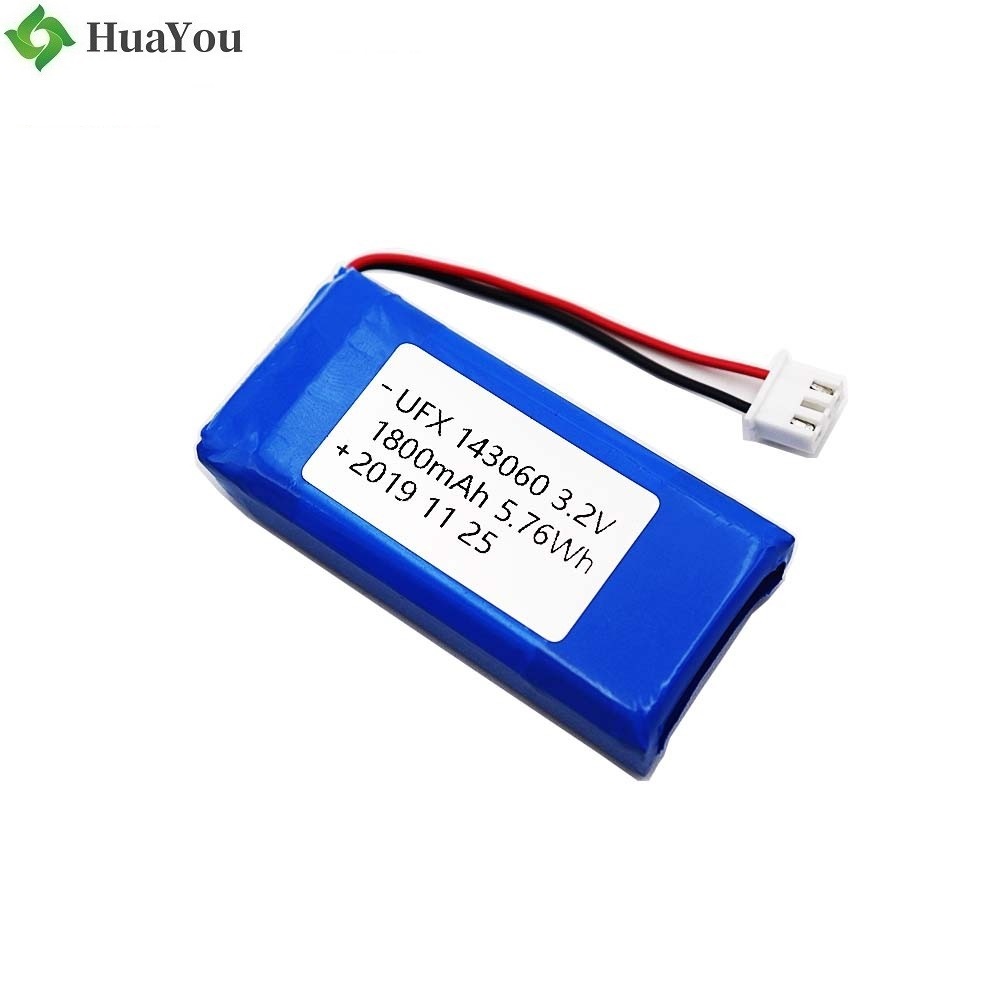

143060 1800mAh 3.2V LiFePO4 Battery

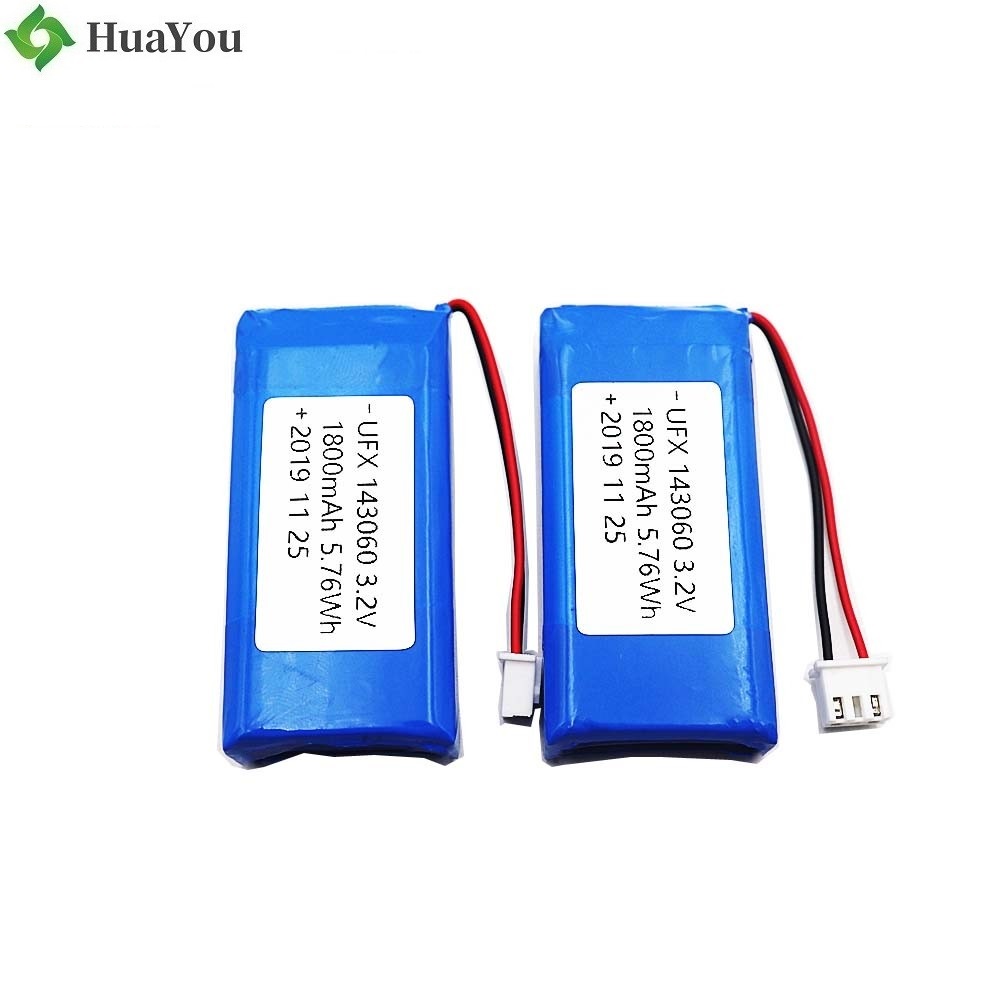

143060 1800mAh 3.2V LiFePO4 Battery

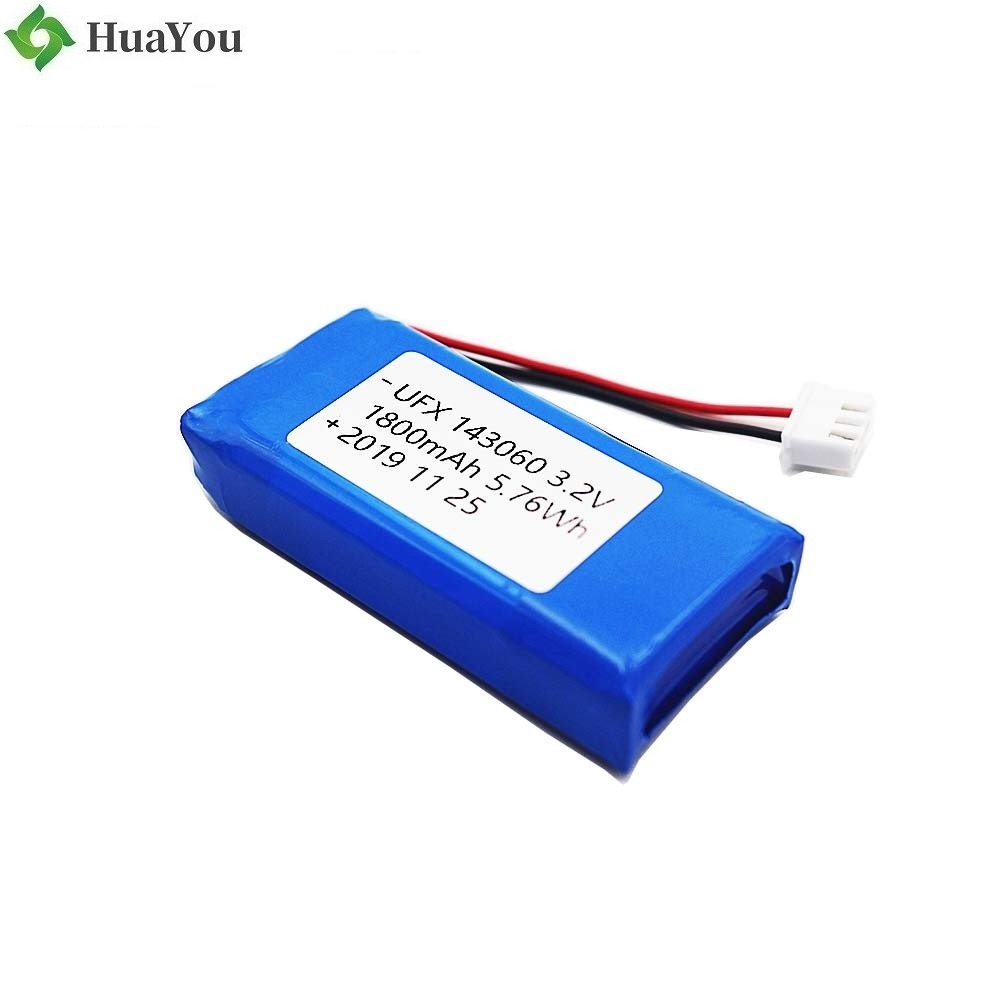

143060 1800mAh 3.2V LiFePO4 Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

1820mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

1800mAh

2

Nominal Voltage

3.2V

Mean Operation Voltage

3

Voltage at end of

2.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

3.6±0.03V



5

Internal Impedance

≤125mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 3.6V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 2.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 3.6V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 2.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

3C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

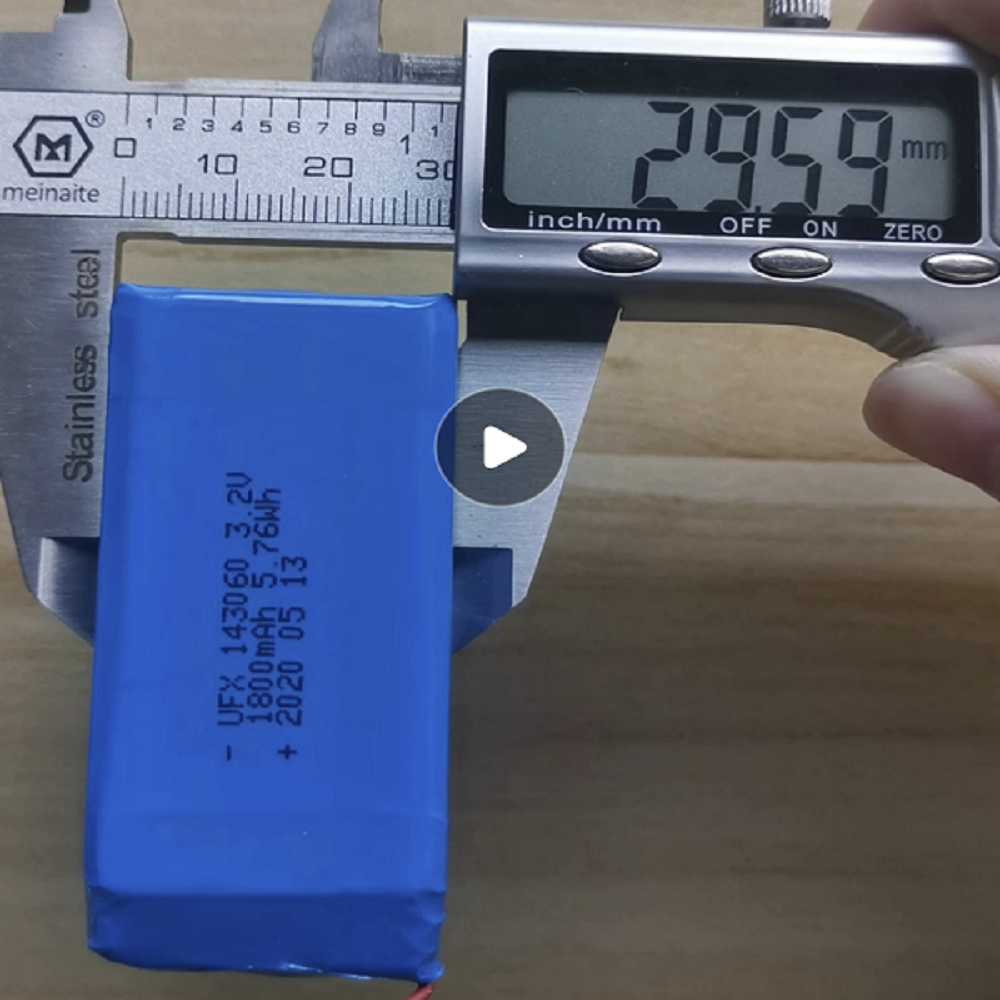

Pack  Dimension

High: max63mm

Width: max30mm
Thickness: max14mm

Initial  Dimension
