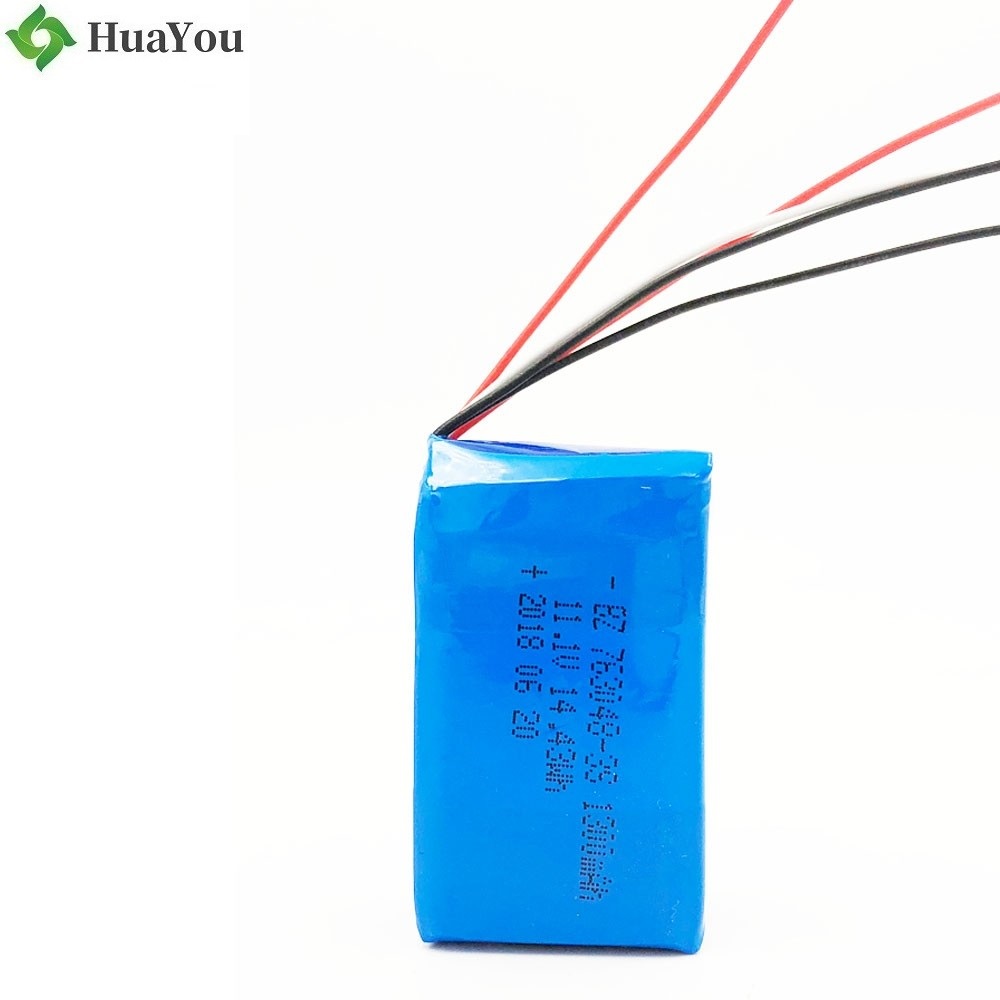

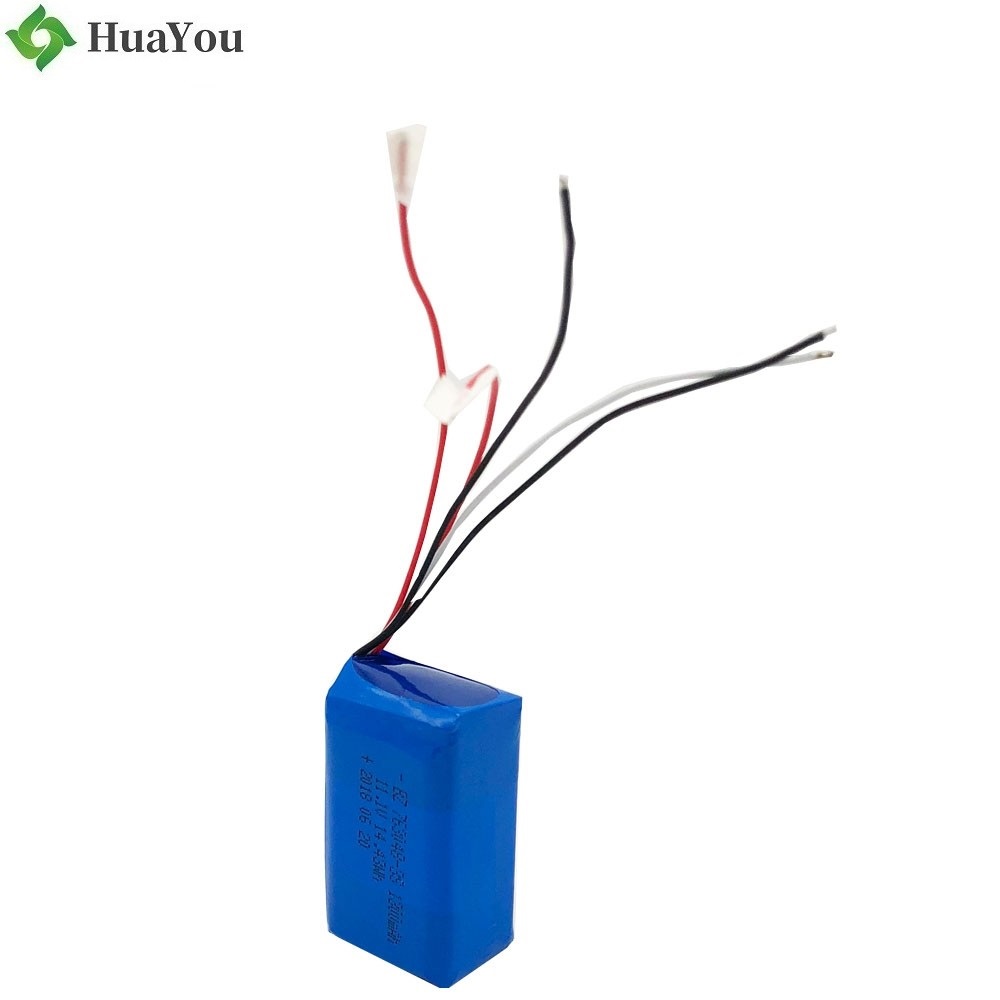

Lithium Battery Manufacturer ODM High Capacity Battery HY 763048 3S 11.1V 1300mAh Li-ion Polymer Battery Pack
FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !
Place of Origin: Guangdong, China (Mainland)
Brand Name: HY
Model Number: 763048
Type: Li-polymer
Nominal Voltage: 11.1V
Size: 23*30*52mm
Nominal Capacity: 1300mAh
Product name: 763048-3S
Warranty: 1 Year
Weight: 75g
Cycle life: 500 Times
Capacity: 1300mah
Voltage: 11.1V
Application: Battery for Medical Device
Certificate: CE/RoHS/UN38.3/MSDS
Payment: Paypal.TT.Escrow.Western Union
Max charge current: 1C
Product Parameters
|
1 |
Rated Capacity |
Typical |
1350mAh |
Standard discharge(0.2C C5A) after Standard charge |
|
Minimum
|
1300mAh |
|||
|
2 |
Nominal Voltage |
11.1V |
Mean Operation Voltage |
|
|
3 |
Voltage at end of Discharge |
8.25V |
Discharge Cut-off Voltage |
|
|
4 |
Charging Voltage |
12.6±0.03V |
|
|
|
5 |
Internal Impedance |
≤60mΩ |
Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times
|
|
|
6 |
Standard charge |
Constant Current 0.2C5A Constant Voltage 12.6V 0.01 C5A cut-off |
Charge time : Approx 6h |
|
|
7 |
Standard discharge |
Constant current 0.2 C5A end voltage 8.25V |
|
|
|
8 |
Fast charge |
Constant Current 0.5C5A Constant Voltage 12.6V 0.01 C5A cut-off |
Charge time : Approx 3.5h |
|
