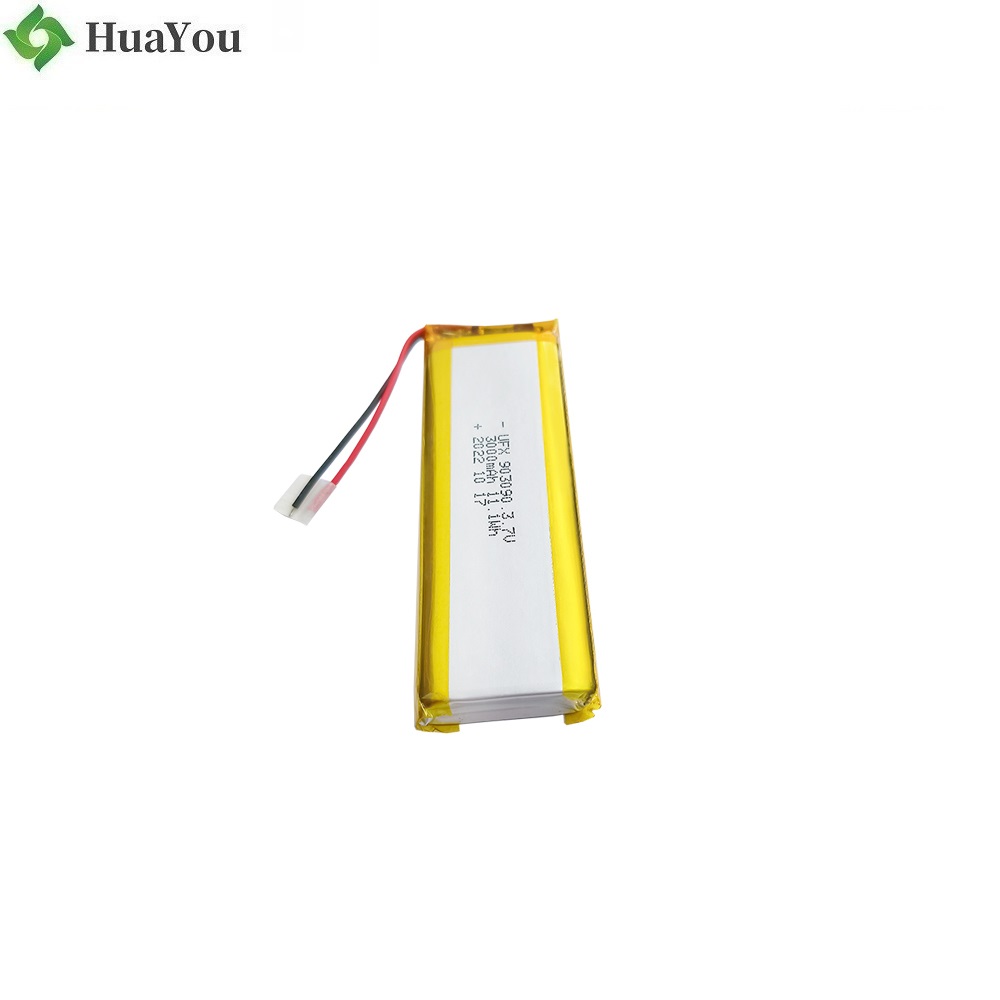

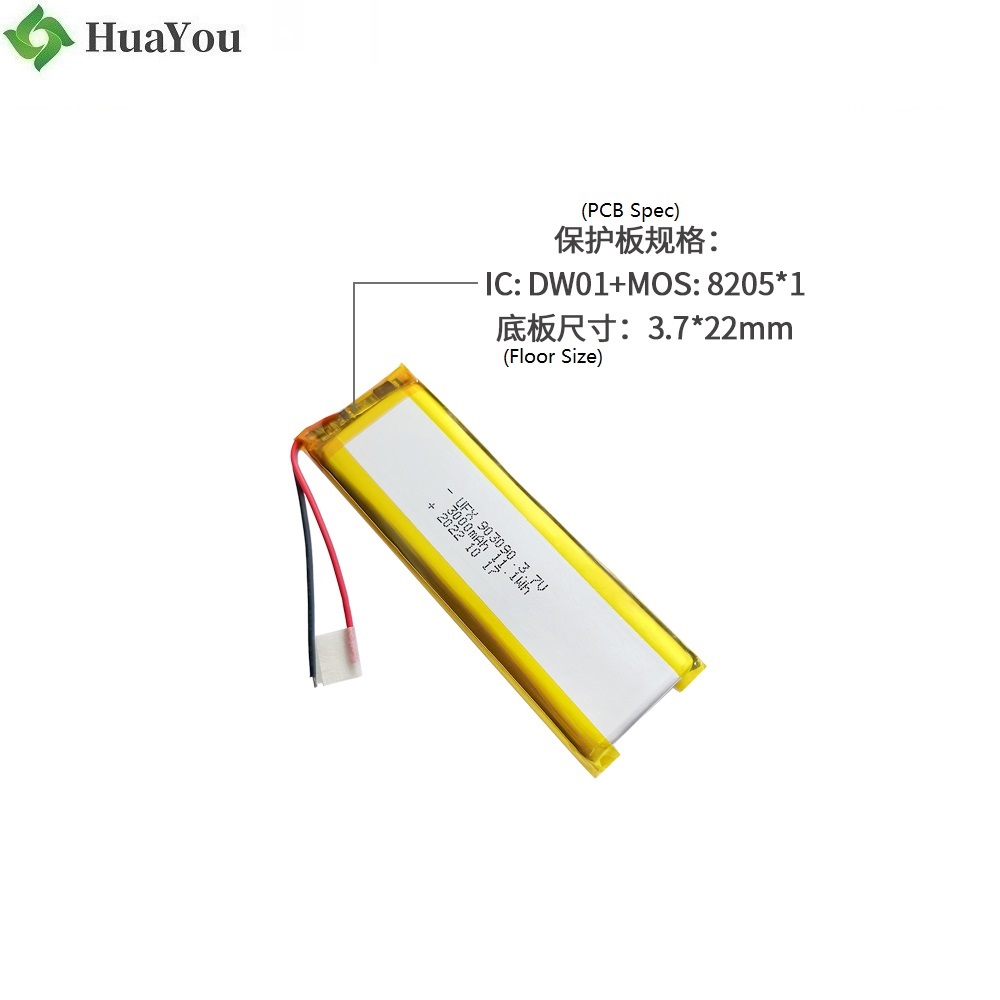

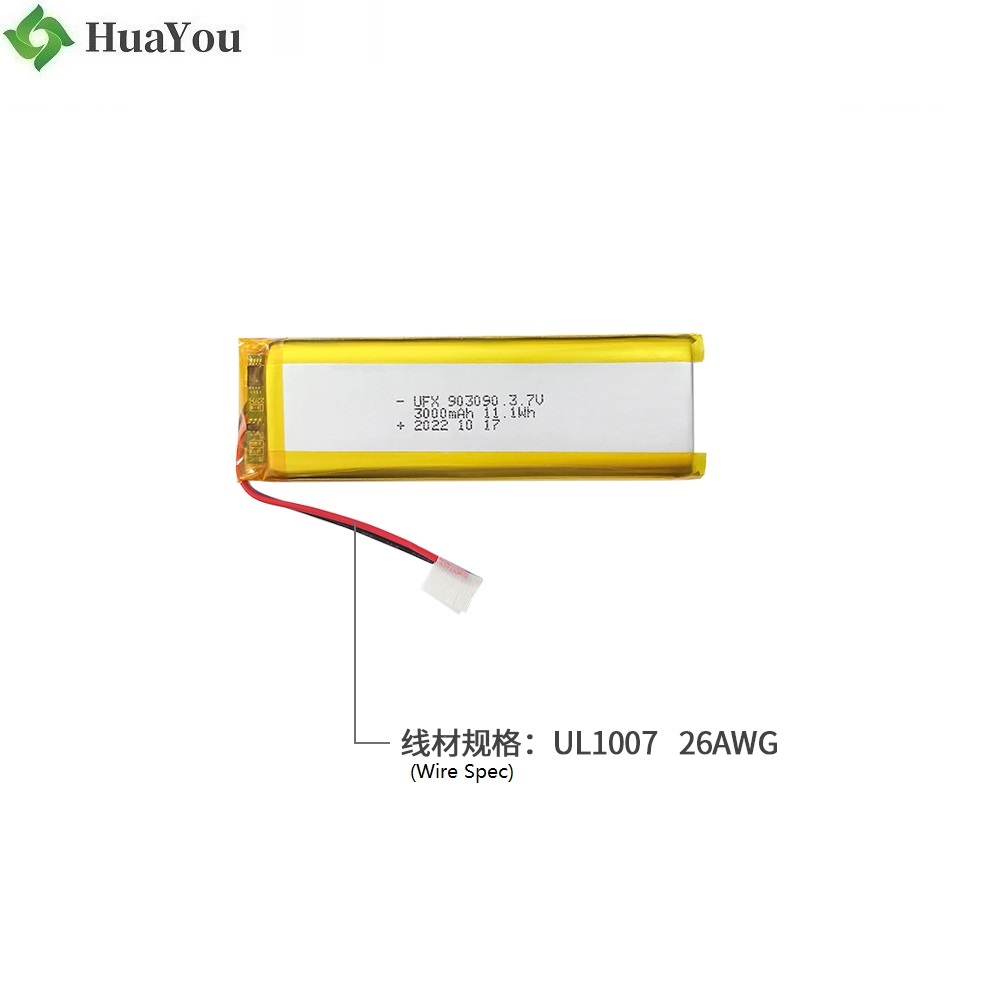

Lithium-ion Cell Factory Wholesale Cheap Portable Power Bank Battery HY 903090 3.7V 3000mAh Lipo Battery

$3.60
In stock
SKU
HY 903090

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !

    Place of Origin: Guangdong, China
    Brand Name: HY
    Model Number: 903090
    Type: Li-polymer
    Nominal Voltage: 3.7V
    Size: 9*30*92mm
    Nominal Capacity: 3000mAh
    Product name: 903090
    Warranty: 1 Year
    Weight: 60g
    Cycle life: 500 Times
    Application: Portable Power Bank Battery
    Certificate: CE/RoHS/UN38.3/MSDS/KC
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C

Li-Ion 18650 Battery

Factory Wholesale Lipo BatteryFactory Wholesale Lipo Battery903090 3.7V 3000mAh Lithium-ion Battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

3050mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

3000mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤60mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1 C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -40~60



13

Storage Temperature Range

Less than 1 year: -40~25

60±25%R.H.

less than 3 months: -40~40℃

at the shipment state

14

Pack  Dimension

High: max92mm

Width: max30mm
Thickness: max9mm

Initial  Dimension
