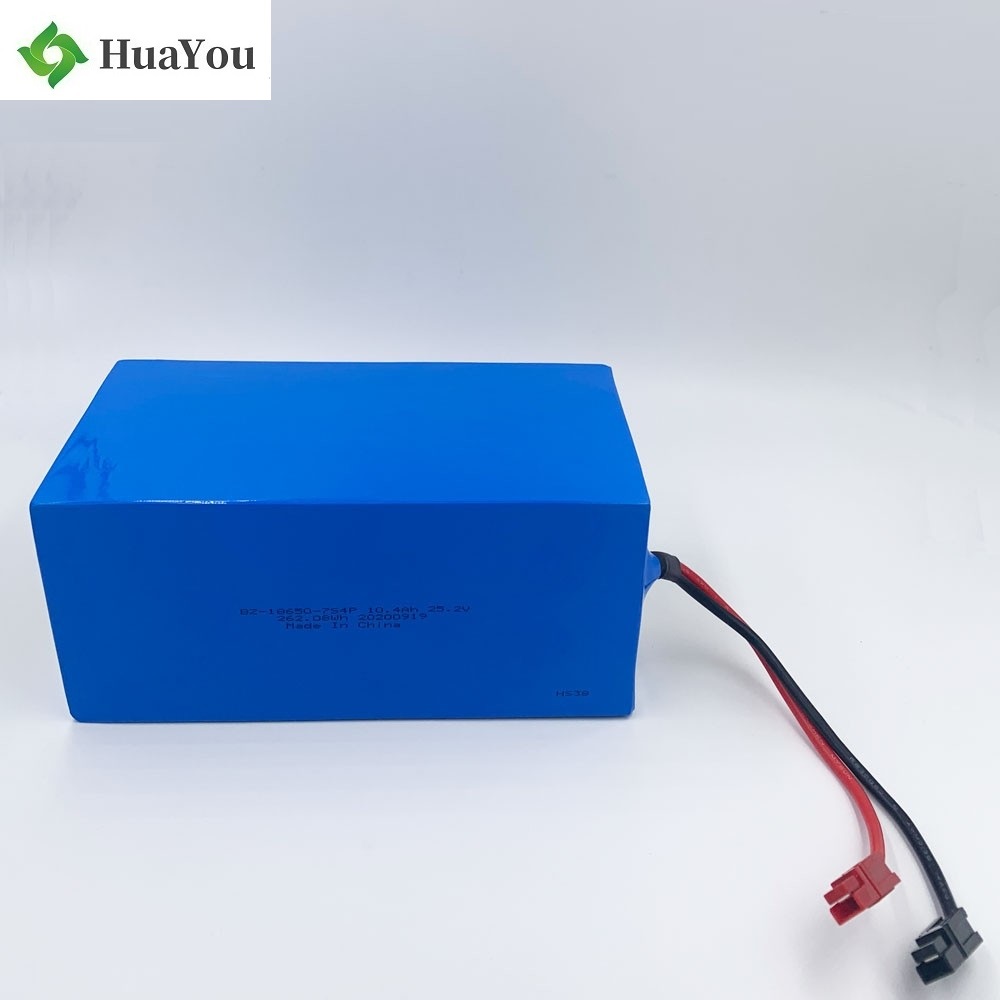

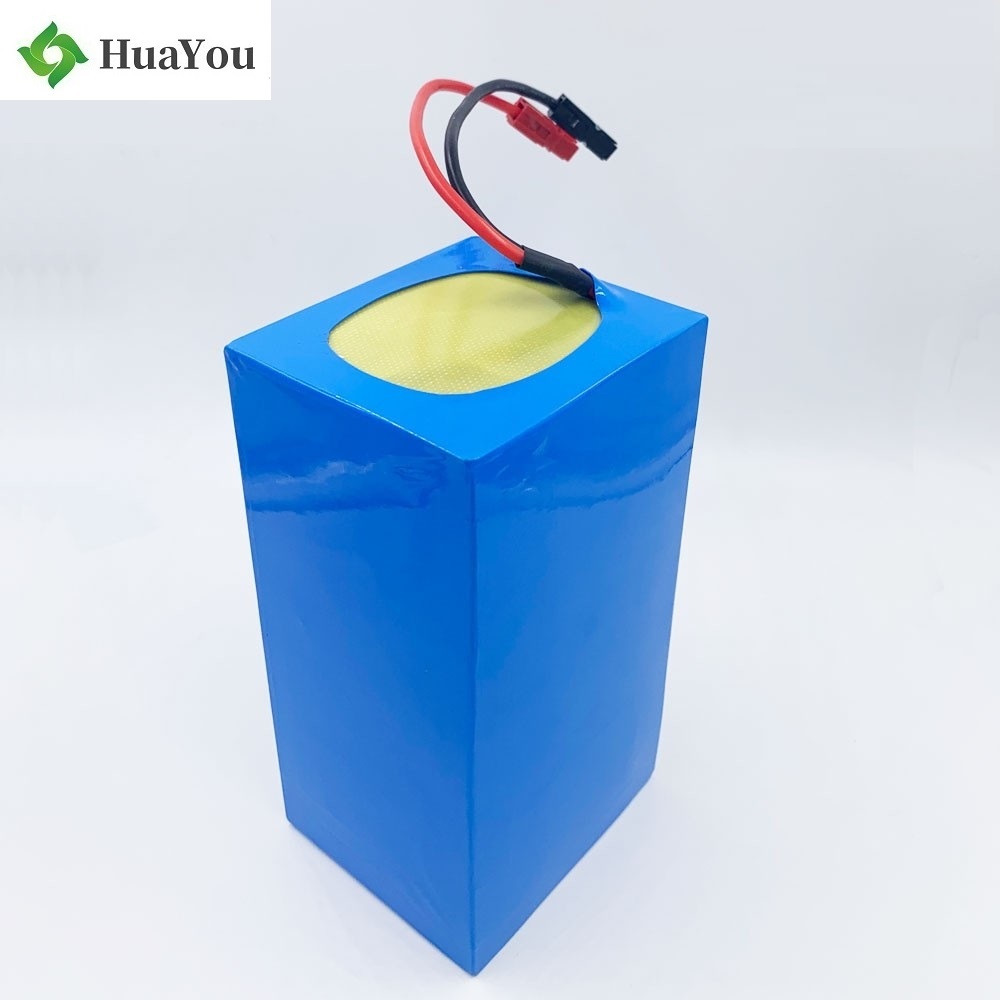

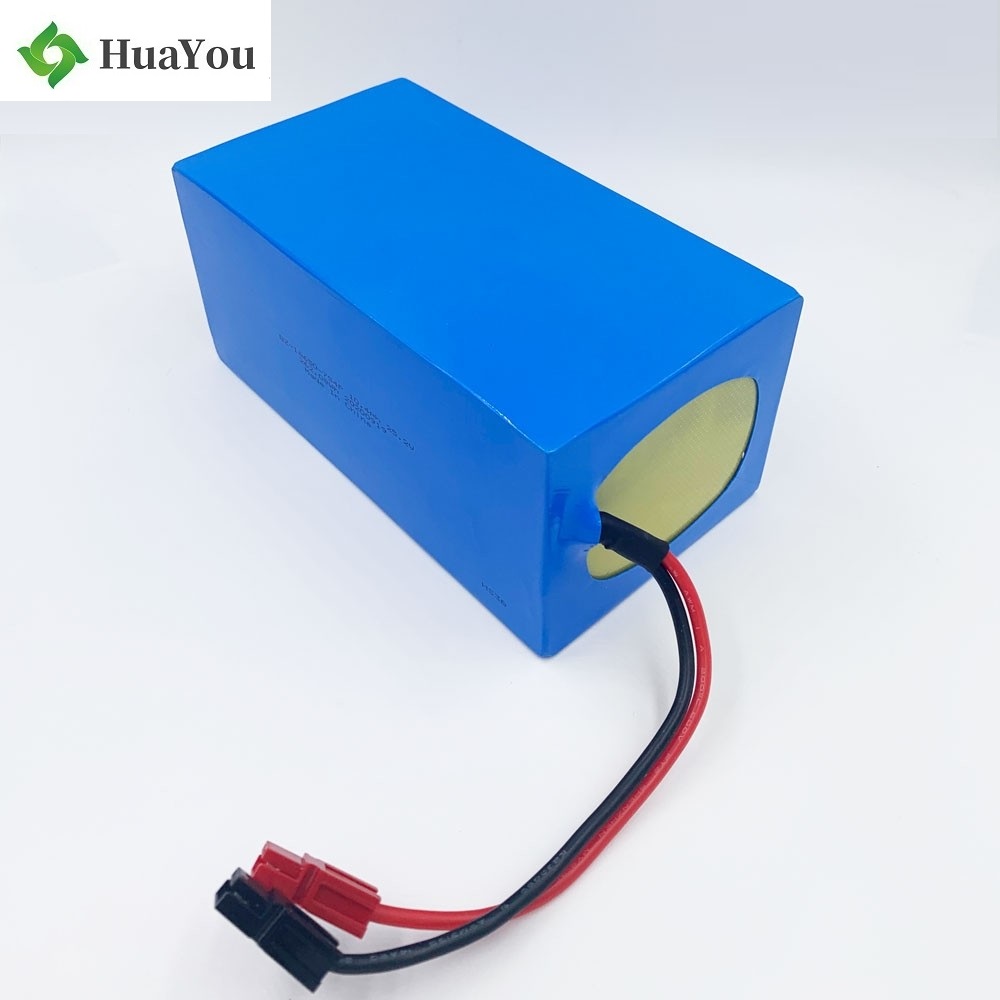

Shenzhen 18650 Battery Factory Supply Long Life Electric Forklift Rechargeable Battery HY 18650-7S4P 25.2V 10.4Ah Li-ion Battery Pack
FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for order li-ion battery !
Place of Origin: Guangdong, China
Brand Name: HY
Model Number: 18650-7S4P
Type: Li-ion
Nominal Voltage: 25.2V
Size: 76*88*165mm
Nominal Capacity: 10.4Ah
Product name: HY 18650-7S4P Li-ion Battery
Warranty: 1 Year
Weight: 1.3Kg
Cycle life: 2000 cycles
Application: Electric Forklift Battery
Certificate: UN38.3/CE/MSDS/ROHS/KC/FCC
Payment: Paypal.TT.Escrow.Western Union
Max charge current: ≤0.5C
Product Parameters
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical |
10.4Ah |
Standard discharge 0.2C (A) after Standard charge |
|
Minimum |
9.9Ah |
|||
|
2 |
Nominal Voltage |
25.2V |
Mean Operation Voltage |
|
|
3 |
Voltage at end of |
About 19.6V |
Discharge Cut-off Voltage |
|
|
Discharge |
||||
|
4 |
Charging Voltage |
29.2V |
||
|
5 |
Internal Impedance |
≤80mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
|
The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
||||
|
6 |
Standard charge |
Constant Current 0.2C |
|
|
|
Constant Voltage 29.2V |
||||
|
0.02C cut-off |
||||
|
7 |
Standard discharge |
Constant current 0.2C |
||
|
end voltage 19.25V |
||||
|
8 |
Fast charge |
Constant Current 0.5C |
|
|
|
Constant Voltage 29.4V |
||||
|
0.02C cut-off |
||||
|
9 |
Fast discharge |
Constant current 10A |
||
|
end voltage 19.6V |
||||
|
10 |
Maximum Continuous Charge Current |
15A/15A |
||
|
11 |
Maximum Continuous Discharge Current |
15A/15A |
||
|
12 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. |
|
|
Bare Cell |
||||
|
Discharge: -20~60℃ |
||||
|
13 |
Storage Temperature Range |
Capacity 80%: 0~40℃ |
60±25%R.H. |
|
|
Recommended long-term storage temperature: 15~25℃ |
at the shipment state |
|||
|
14 |
Pack Dimension |
High: max165mm Width: max88mm |
Initial Dimension |
|
