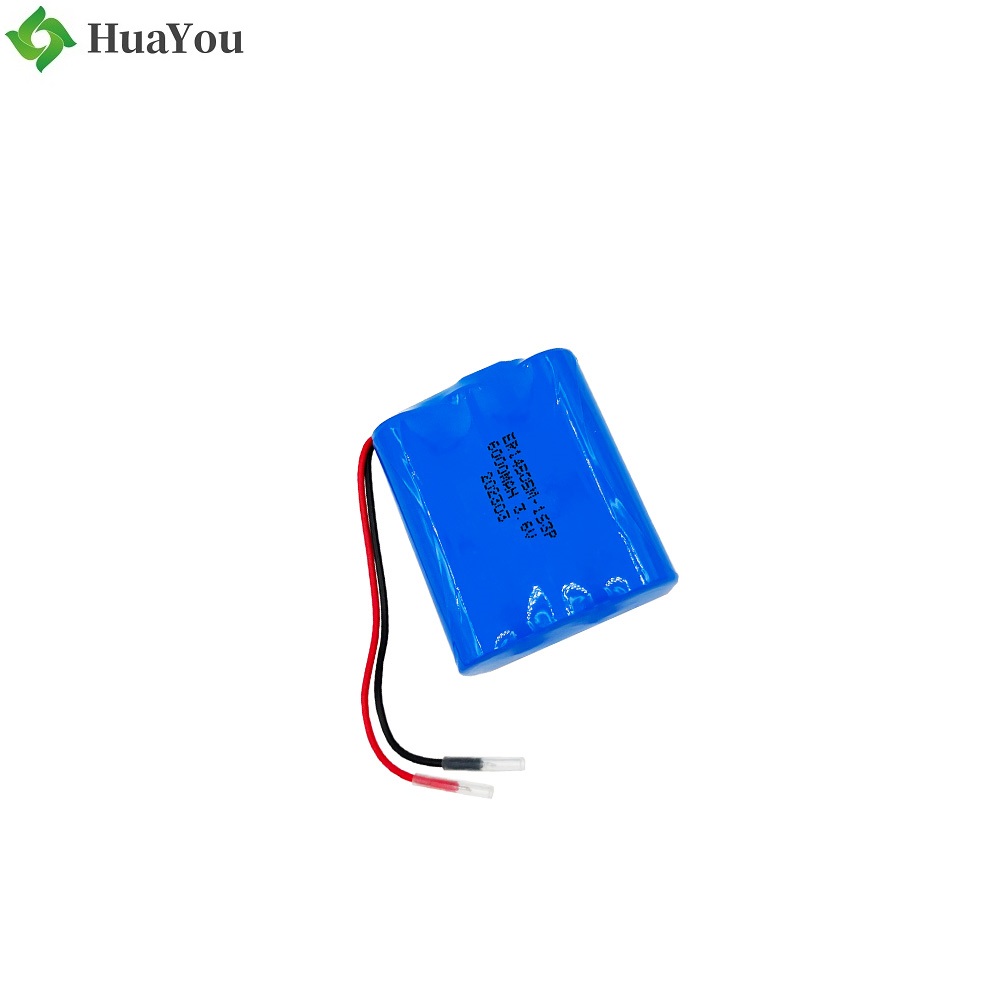

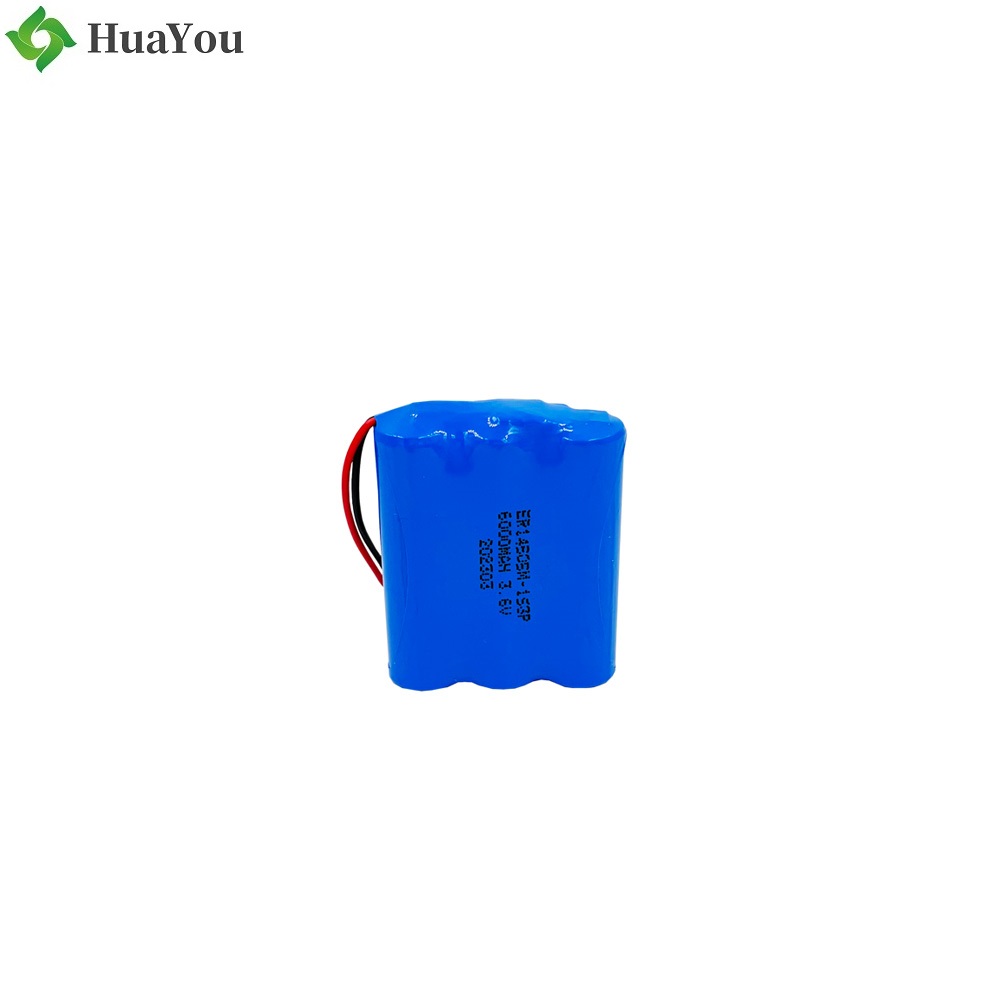

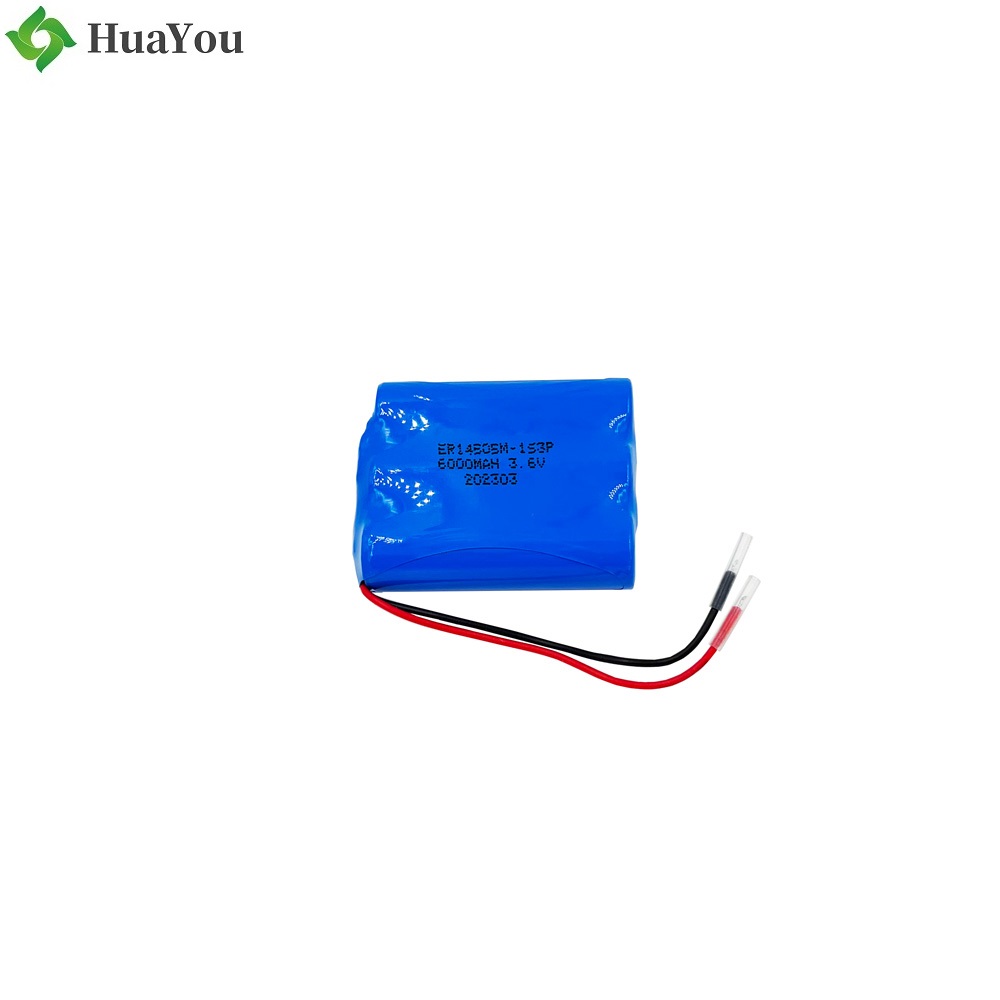

Wholesale Track Device Cylindrical Battery ER14505-1S3P 3.6V 6000mAh Lithium-thionyl Chloride Battery
FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !
Place of Origin: Guangdong, China
Brand Name: HY
Model Number: ER14505-1S3P
Type: Lithium-thionyl Chloride Battery
Nominal Voltage: 3.6V
Size: 14*43*53mm
Nominal Capacity:6000mAh
Product name: HY Lithium-thionyl Chloride Battery
Warranty: 1 Year
Weight: 65g
Cycle life: 500 Times
Application: Tracker Battery
Certificate: UN38.3/CE/MSDS/ROHS
Payment: Paypal.TT.Escrow.Western Union
Product Parameters
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical |
6000mAh |
|
|
Minimum |
6000mAh |
|||
|
2 |
Nominal Voltage |
3.6V |
Mean Operation Voltage |
|
|
3 |
Voltage at end of |
2.0V |
Discharge Cut-off Voltage |
|
|
Discharge |
||||
|
4 |
Internal Impedance |
≤60mΩ |
|
|
|
|
||||
|
5 |
Maximum Continuous Discharge Current |
50mA |
||
|
6 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. |
|
|
Bare Cell |
||||
|
Discharge: -20~60℃ |
||||
|
7 |
Storage Temperature Range |
Less than 1 year: -20~25℃ |
60±25%R.H. |
|
|
less than 3 months: -20~40℃ |
at the shipment state |
|||
|
8 |
Pack Dimension |
High: max53mm Width: max43mm |
Initial Dimension |
|
